Introducción del Producto

APEX is a freestanding manual aluminum pergola distinguished by its gabled louvered roof and architectural double-slope profile. Developed for patios, gardens, villa courtyards and outdoor dining areas, it provides an alternative to conventional flat-roof pergola systems.
The two sloping gable roof sections meet along a central ridge and use manually adjustable aluminum louvres to regulate sunlight, shade and natural airflow. The louvres can open up to 135°, allowing users to adapt the roof position throughout the day without motors, electrical wiring or powered control components.

The structure combines 166 × 34 mm roof louvres, 195 × 75 mm beams and 116 × 116 mm posts. APEX supports a maximum pivot of 3 m, a maximum span of 4 m and a loading capacity of 35 kg/m². Standard freestanding configurations are available in 3 × 3 m and 3 × 4 m sizes, each using a four-post layout.

Optional vertical WPC decoration slats can be added to selected sides to improve partial shade, privacy and architectural definition. With its pitched roof form, manual operation and coordinated aluminum structure, APEX is designed for outdoor projects where visual identity and practical shade control are equally important.

Características Clave
- Gabled Louvered Roof:
A distinctive double-slope roof profile creates a stronger architectural identity than a conventional flat-roof pergola.
- Manually Adjustable Louvres:
Manually adjustable roof louvres open up to 135° to help regulate sunlight, shade and natural airflow.
- Aluminum Structural System:
The pergola combines 166 × 34 mm louvres, 195 × 75 mm beams and 116 × 116 mm posts in a coordinated aluminum structure.
- Non-Motorized Roof Control:
Manual operation provides adjustable roof control without motors, wiring, transformers or electrical installation.
- Freestanding Configuration:
Designed as a four-post freestanding gabled pergola for open patios, garden dining areas and villa courtyards.
- Practical Structural Performance:
The system supports a maximum pivot of 3 m, a maximum span of 4 m and a loading capacity of 35 kg/m².
- Standard Size Selection:
Available in 3 × 3 m and 3 × 4 m configurations for compact and medium-sized outdoor seating or dining layouts.
- Optional Vertical WPC Slats:
Compatible vertical WPC decoration slats can add partial privacy, filtered shade and stronger visual definition to selected sides.
Tamaño del Producto
3 × 3 m / aprox. 9,8 × 9,8 ft
4 × 3 m / aprox. 13,1 × 9,8 ft

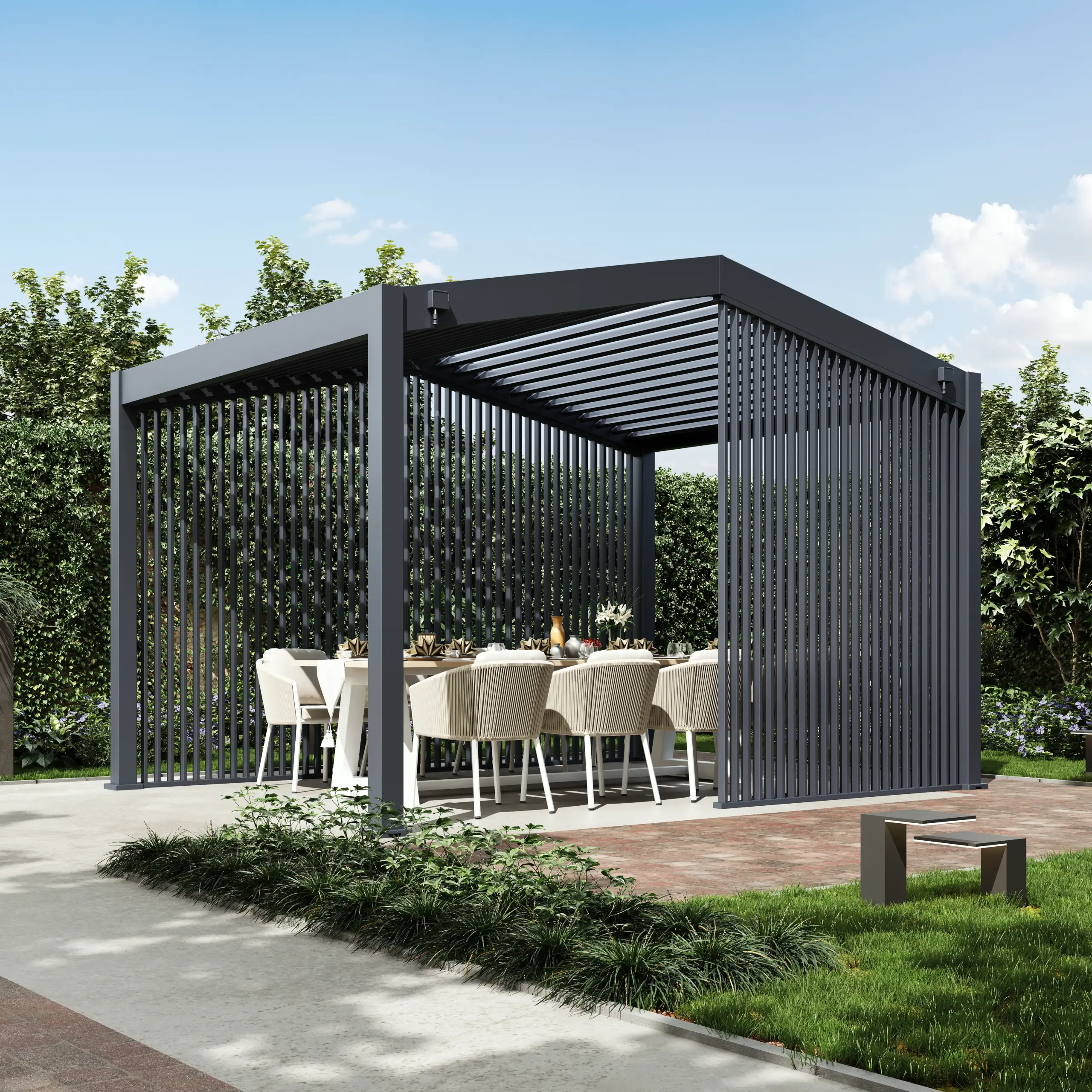

APEX freestanding gabled aluminum louvered pergola with vertical side slats in a garden

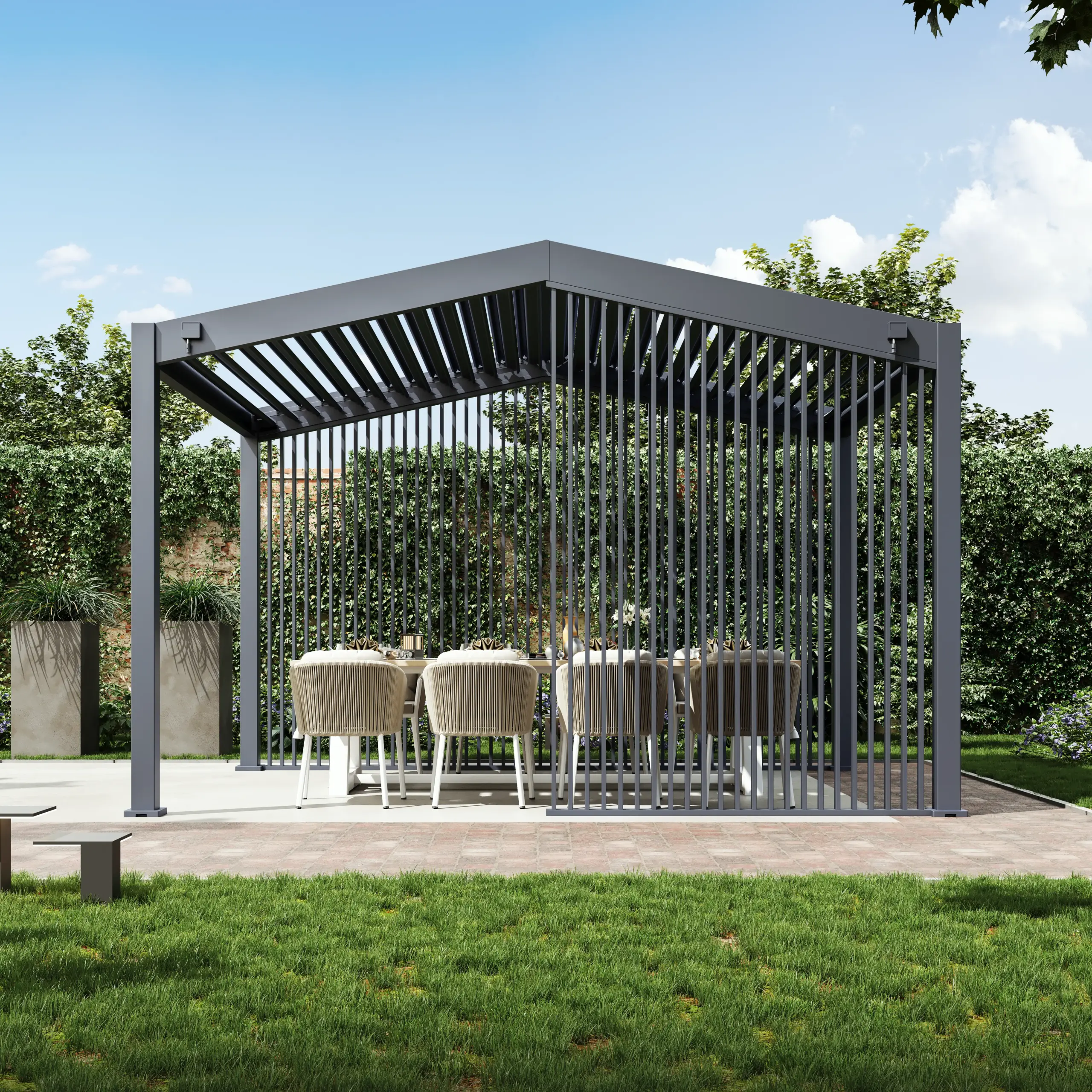

APEX manual gable roof aluminum pergola with vertical slats for an outdoor dining area

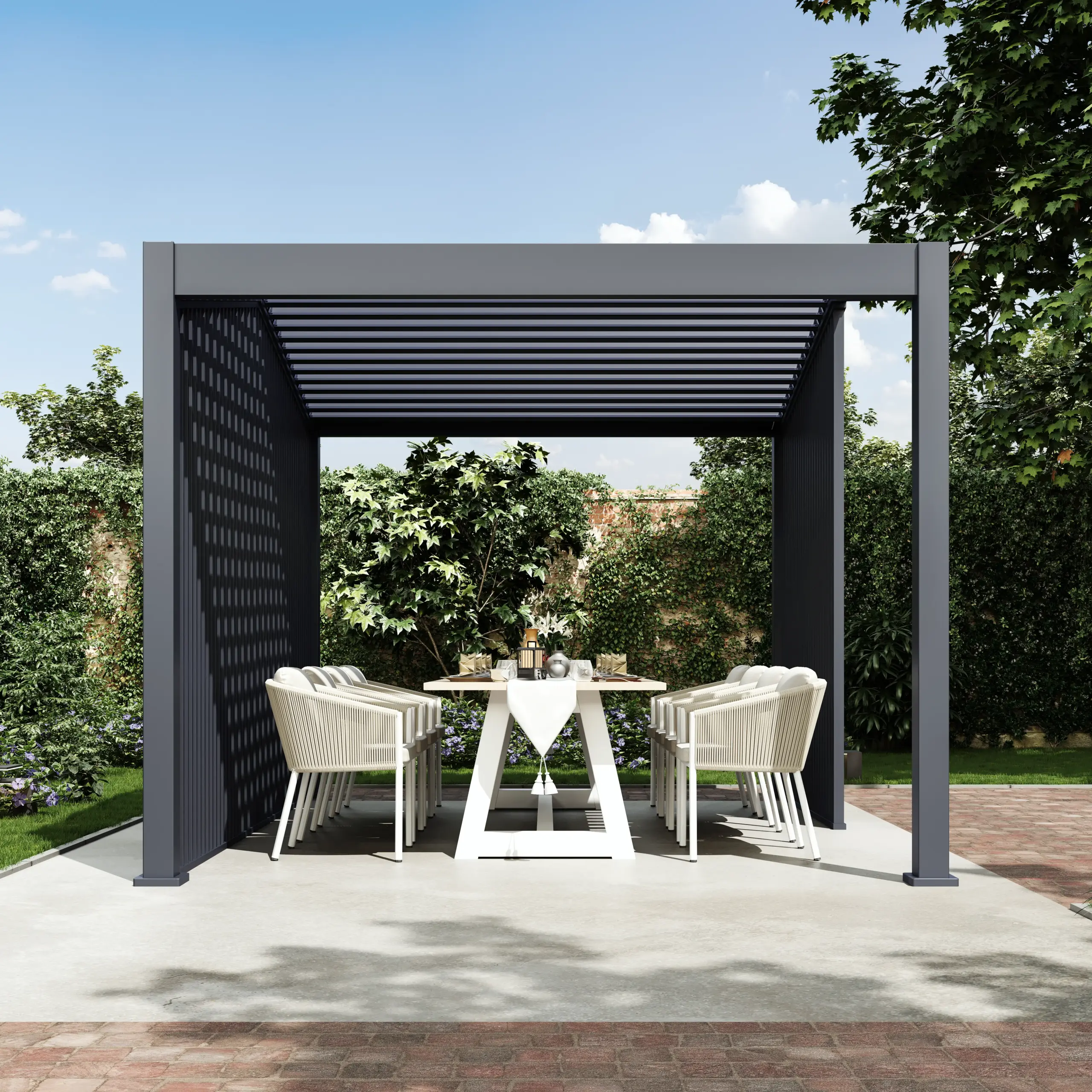

Front view of the APEX freestanding gabled aluminum pergola with an open dining area
APEX LAMA VIGA POSTE PIVOTE MÁX. Luz máx.
166x34mm-Aluminum 195x75mm-Aluminum 116x116mm-Aluminum 3m 4m
Apex size Independiente
3x3m		 3080×3080×2520 mm (L×F ×A) 4 Postes
Independiente
4x3m		 4000×3080×2520 mm (L×F×A) 4 Postes
Apex Independiente Sí Color
Adosada a Pared No
Capacidad de Carga 35 kg/m2
Apertura Máx. de Lamas 135°
Lamas Motorizadas No
