Product Introduction

ECOLINE is an economical all-steel manual louvered pergola developed for residential patios, gardens, backyards and practical outdoor shade applications.
It combines steel roof louvres, steel beams and steel posts in a freestanding structure, providing a straightforward adjustable roof solution for projects that require manual shade and airflow control without motors, wiring or electrical components.

The manually adjustable steel louvres can open up to 135°, allowing users to respond to changing sunlight, ventilation and shade requirements throughout the day. Available in standard 3 × 3 m, 3 × 4 m and 3 × 6 m configurations, ECOLINE provides a practical steel pergola option for outdoor seating, garden relaxation and cost-conscious residential projects.

With its all-steel construction, simple manual operation and standard-size configurations, ECOLINE is positioned as an entry-level steel louvered pergola for markets where controlled cost, functional shade and straightforward outdoor use are the main priorities.

Key Features
- Economical All-Steel Pergola:
A practical manual steel pergola designed for cost-conscious patio, garden and backyard shade projects.
- Adjustable Steel Louvres:
Manually adjustable roof louvres open up to 135° to help regulate sunlight, shade and natural airflow.
- Full Steel Construction:
Steel louvres, beams and posts form a coordinated freestanding structure for practical residential outdoor use.
- Manual Louvered Roof:
Provides adjustable roof control without motors, electrical wiring or powered operating components.
- Freestanding Configuration:
Designed as a self-supporting steel pergola for open patios, garden decks and outdoor seating areas.
- Practical Load Performance:
The structure is rated for a loading capacity of 30 kg/m² for standard residential shade applications.
- Standard Size Selection:
Available in 3 × 3 m, 3 × 4 m and 3 × 6 m configurations for different patio and garden layouts.
- Entry-Level Steel Pergola Option:
Developed for customers and markets that require a functional steel louvered pergola with controlled product cost.
Product Size
3 × 3 m / approx. 9.8 × 9.8 ft
4 × 3 m / approx. 13.1 × 9.8 ft
6 × 3 m / approx. 19.7 × 9.8 ft

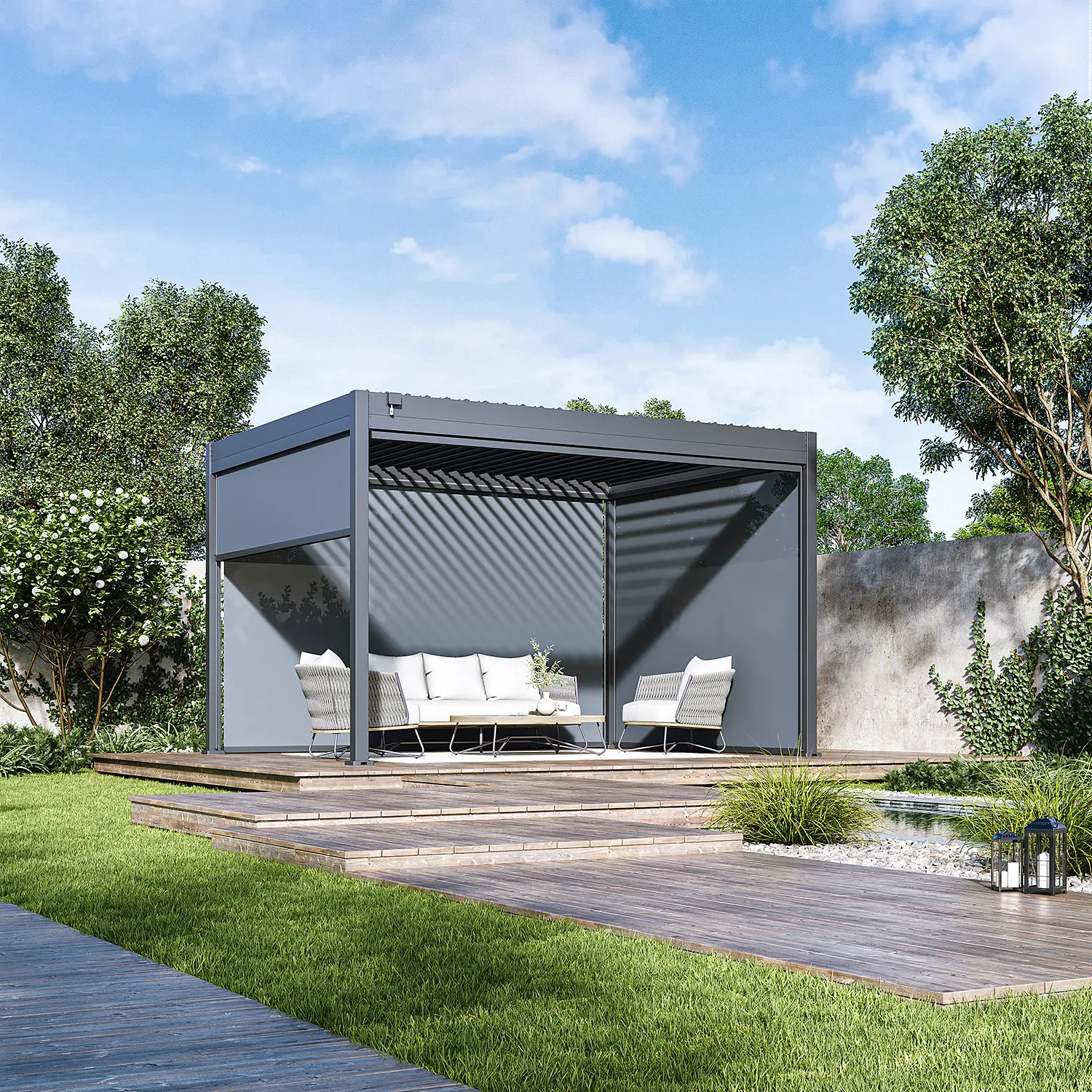

ECOLINE freestanding manual steel louvered pergola with open roof louvres in a garden patio

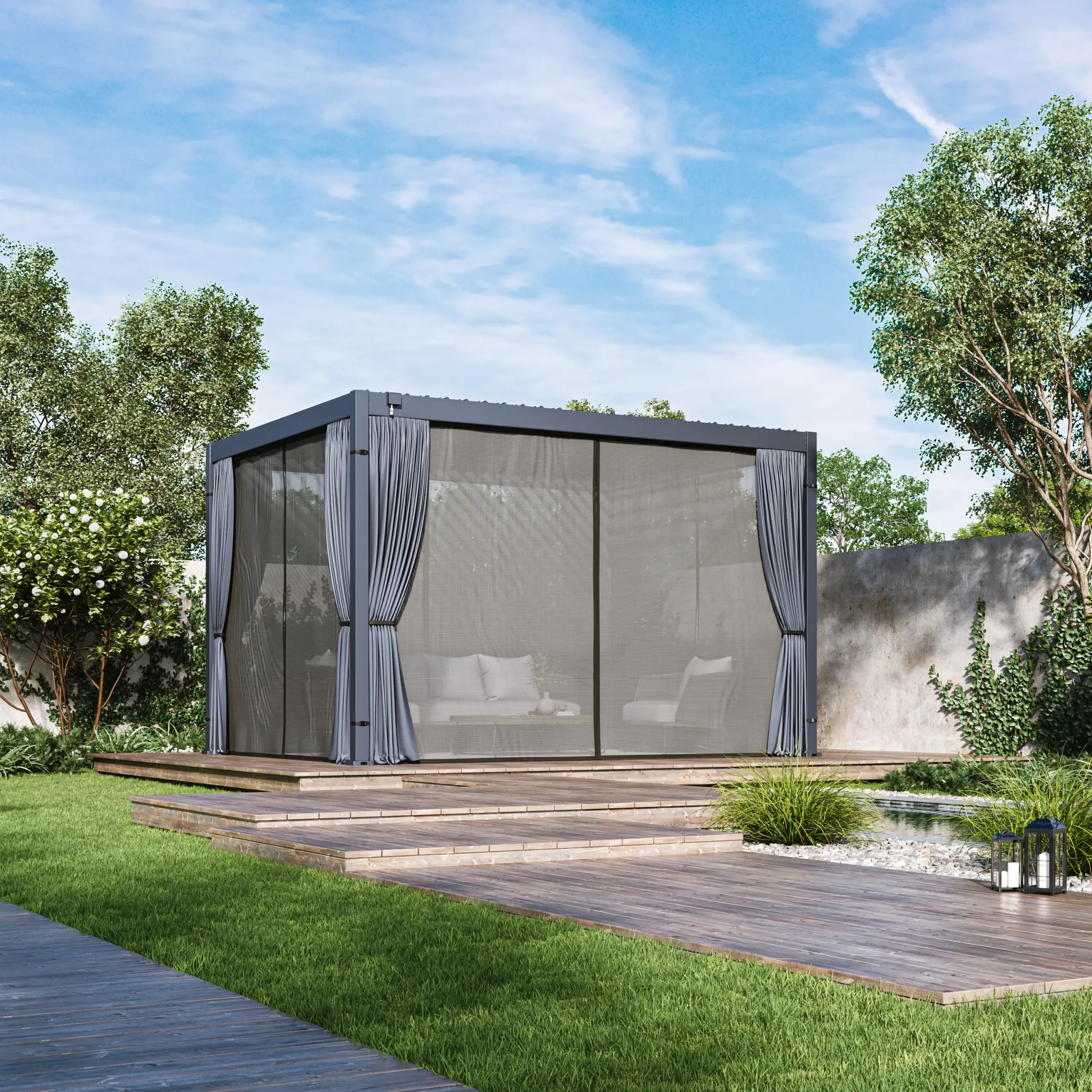

ECOLINE steel louvered pergola enclosed with outdoor curtains and mosquito net panels



ECOLINE manual steel pergola with privacy side screens and adjustable louvered roof

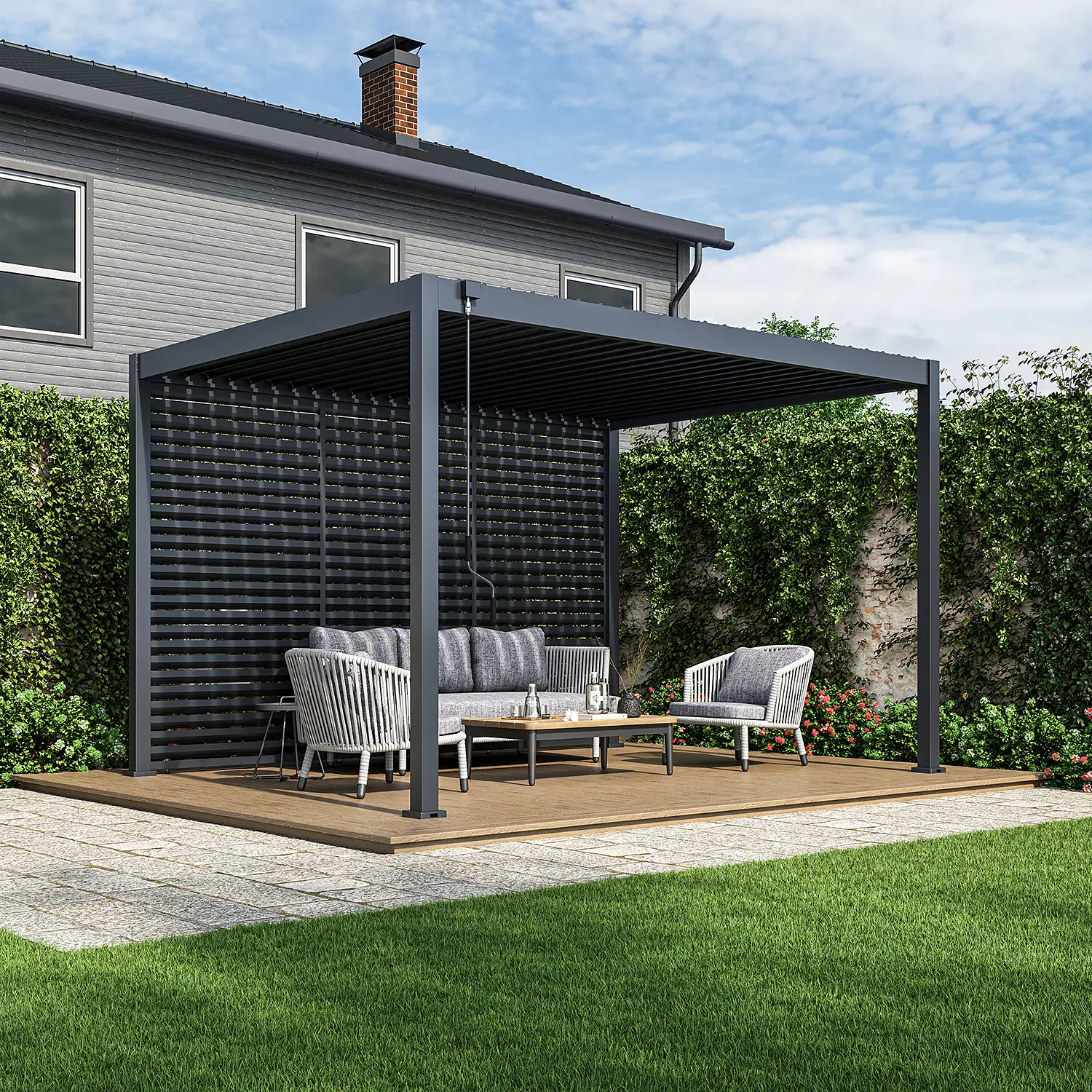

ECOLINE freestanding steel pergola with horizontal louver side panel beside a residential patio
ECOLINE Louver Beam Post Max Pivot Max Span
166x34mm-Steel 155x75mm-Steel 96x96mm-Steel 3m 4m
Ecoline size Freestanding
3x3m		 3080x3080x2520mm (LxDxH) 4 Posts
Freestanding
4x3m		 4000x3080x2520mm (LxDxH) 4 Posts
Freestanding
6x3m		 6000x3080x2520mm (LxDxH) 6 Posts
Ecoline Freestanding Yes Color
Wall Mounting No
Loading Capacity 30 kg/m2
Max louver Open 135°
Motorized louver No
