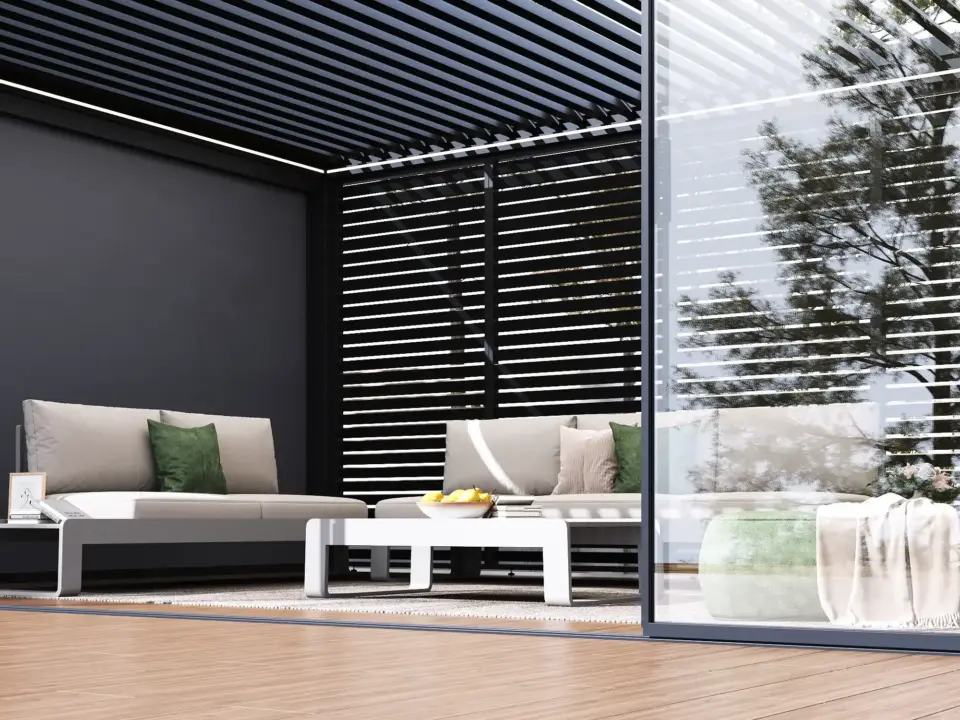

The Slimline Frame Glass Door is a framed sliding glass side-enclosure panel door system designed for compatible outdoor louvered aluminum pergola systems.
Its glass panels operate along a two-track arrangement, allowing the outdoor shading structure side to shift between more enclosed and more open configurations while maintaining a transparent visual connection with the surrounding outdoor space.
Compared with a frameless glass system, this slimline frame pergola glass enclosure introduces narrow aluminum framing around the glass panels, creating a more defined panel structure while still preserving a clean and modern appearance.
The system is suitable for patios, terraces, garden lounges, hospitality spaces, and commercial outdoor projects where transparent side enclosure and sliding access are required.
Two-Track Sliding Glass System
The glass door panels move along a two-track arrangement, allowing smooth lateral opening and closing without requiring a hinged swing area.

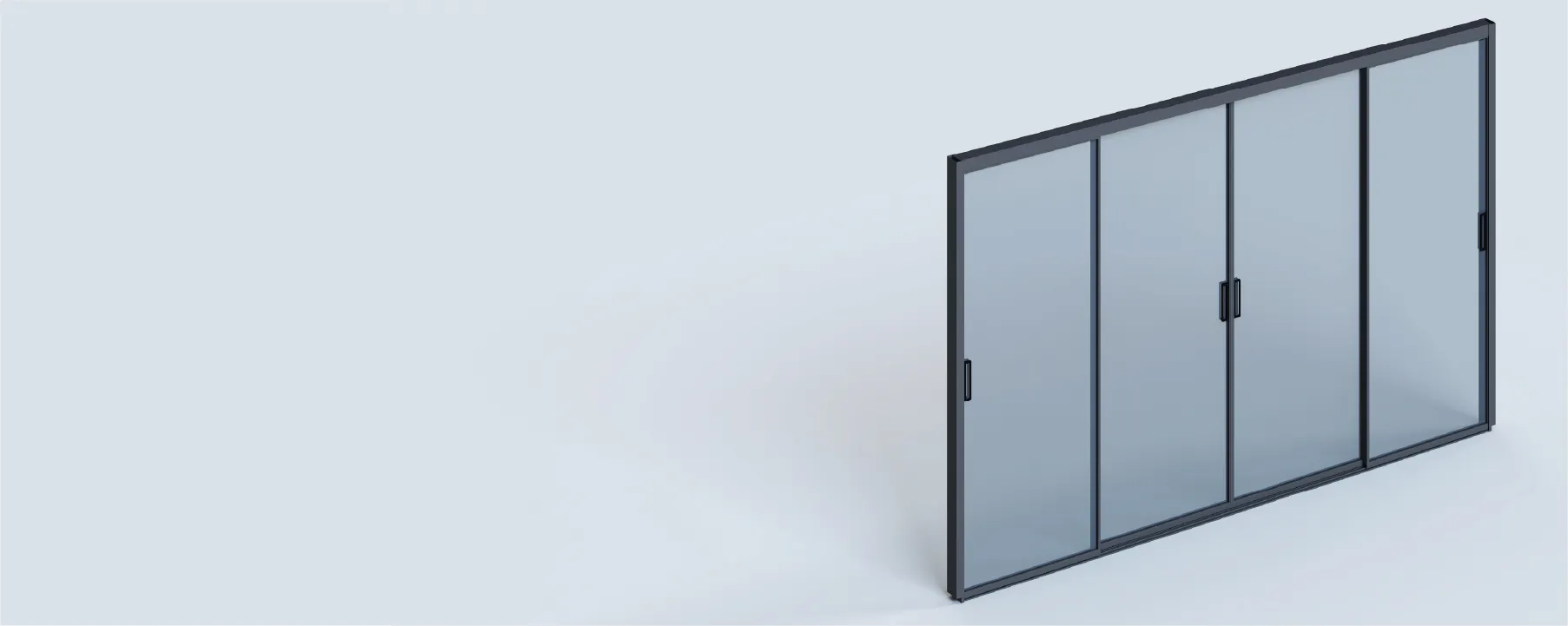

Slimline Aluminum Framing
Narrow aluminum framing creates a more defined panel structure than a frameless system while maintaining a light and contemporary architectural appearance.
Transparent Side Enclosure
The glazed panel layout creates separation around the pergola without blocking exterior views, helping maintain openness within the outdoor space.
Flexible Opening Positions
The sliding door system can be arranged in more closed or more open positions according to access, circulation, and the intended use of the louvered pergola area.
Space-Efficient Sliding Operation
Because the panels slide laterally, the system can be used in pergola layouts where outdoor furniture, walkways or landscape elements are positioned close to the enclosure line.
Modular Glass Panel Configuration
Individual panel widths are coordinated with standard pergola spans, using four-panel configurations for smaller openings and eight-panel configurations for larger spans.
Project-Specific Glass Coordination
Final glass specification, panel dimensions, frame details, track arrangement, hardware and installation requirements should be confirmed according to the selected pergola system and actual project conditions.
Selective Pergola Compatibility
Designed primarily for selected configurations of Intro Plus, Intro Duo, Prime Plus, Prime Max and Prestige pergolas, with Neo Steel and Neo Alu subject to configuration confirmation.
| Neo Steel | Neo Alu | Intro Plus | Intro Duo | Prime Plus | Prime Max | Prestige |
 | |  | | | | |
| Pergola size | Individual glass panel width | Number of Panels |
| 3.0m | 0.68m | 4 |
| 3.6m | 0.84m | 4 |
| 4.0m | 0.91m | 4 |
| 6.0m | 0.68m | 8 |
| 7.2m | 0.84m | 8 |
| 8.0m | 0.91m | 8 |

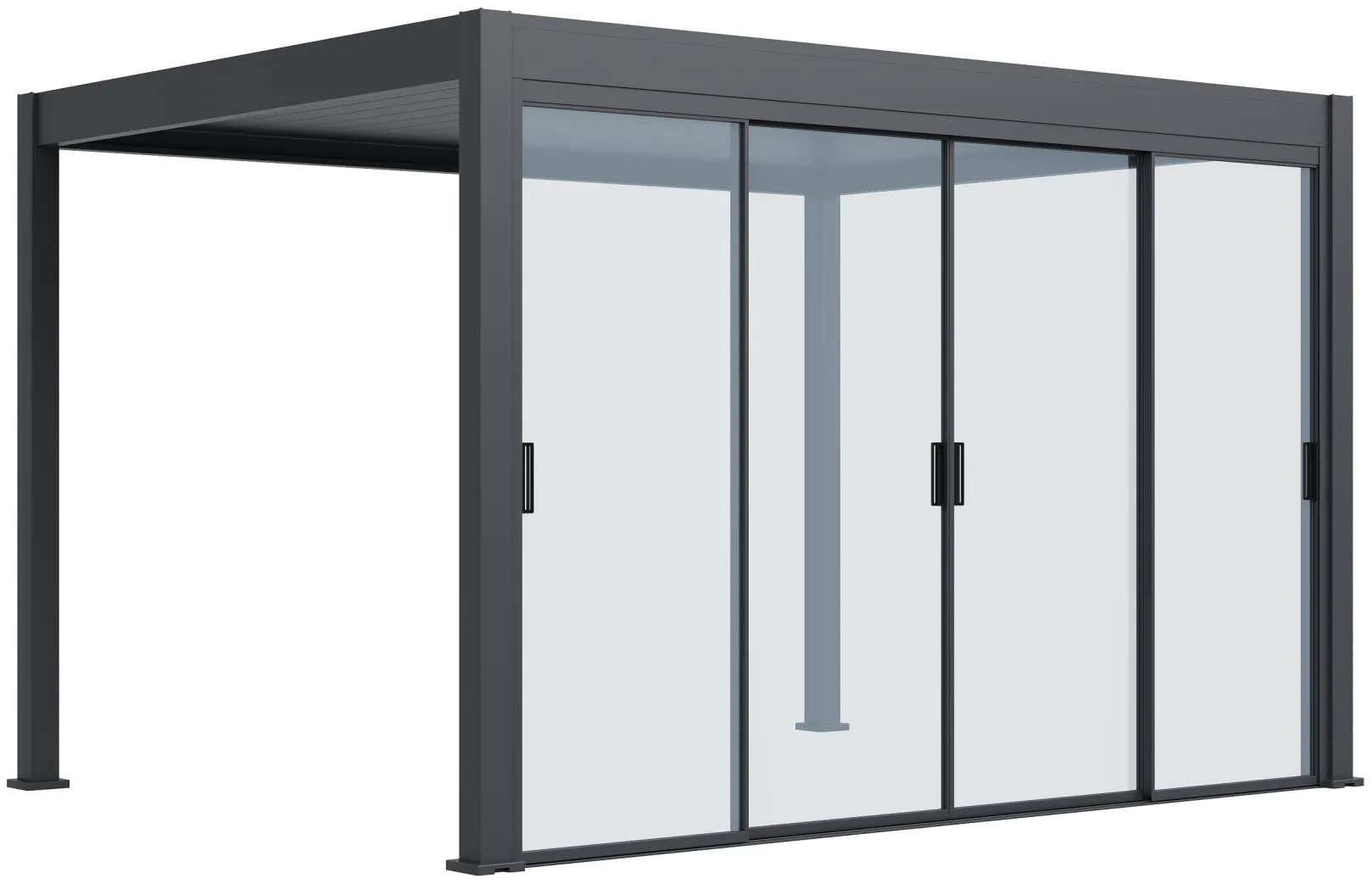

Compatible Pergola Systems
The Slimline Frame Glass Door is designed primarily for selected configurations of
INTRO PLUS,
INTRO DUO,
PRIME PLUS,
PRIME MAX
and
PRESTIGE
aluminum louvered pergola systems.
Its slim-framed sliding glass panel system creates a transparent side enclosure while maintaining a more defined panel structure and allowing flexible opening arrangements for circulation, ventilation and outdoor-space usage.
Availability for
NEO STEEL
and
NEO ALU
should be confirmed according to the pergola configuration, side-opening dimensions, track interface, panel quantity and intended installation layout.
Final glass specification, individual panel width, frame profile, track arrangement, hardware and installation requirements should be confirmed according to the selected pergola system and actual project dimensions.
For projects requiring a cleaner panel appearance with reduced visible framing, compare the
Frameless Sliding Glass Door for Pergola.
